Bakery Biscuit Packing Machine

This bakery biscuit packing machine is a multi-head weighing packaging equipment that can be used to pack multiple biscuits in bags. Accurate weighing ensures uniform weight of each bag.

This packaging machine ensures precise portion control and optimal hygiene. It integrates seamlessly into demanding production lines and is ideal for fragile or irregularly shaped products such as biscotti, shortbread or handmade cookies.

Working Principle of Automatic Biscuit Packing Machine

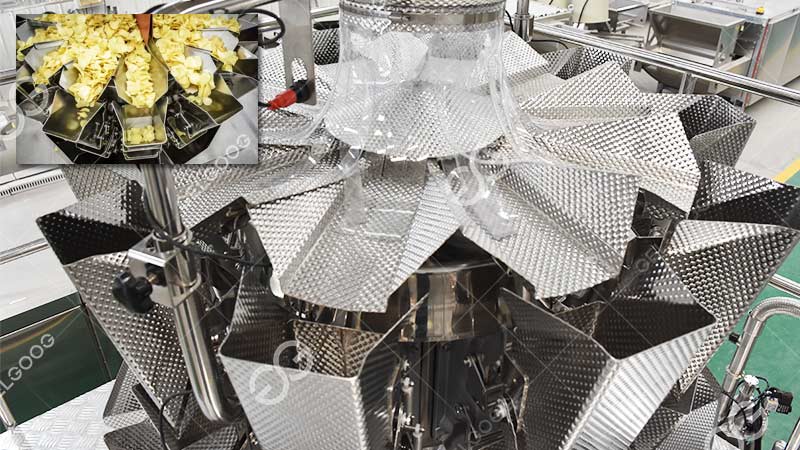

Unlike other packaging machines, this machine uses 10-24 independent weighing heads. The biscuits are conveyed into a vibrating hopper located above a high-precision weighing sensor.

A central computer analyzes the weight in real time and calculates the best hopper combination to achieve the exact target weight. The selected hoppers discharge simultaneously into a central hopper, which fills the pre-made bags or vertical form-fill-seal (VFFS) bags below the hopper to minimize losses.

Operational Steps of Bakery Biscuit Packing Machine

Biscuit Loading: Bulk biscuits are gently transferred (via conveyor or elevator) into the machine’s distribution vibratory pan, ensuring even flow to all weigh heads.
Dynamic Weighing: Each head independently weighs its portion. The PLC instantly identifies the best bucket combination matching the set weight.
Synchronized Discharge: Chosen buckets open simultaneously, depositing biscuits into the bagging system. Vibration settings prevent product damage or jamming.
Bag Forming & Sealing: A vertical form-fill-seal (VFFS) unit creates pillow-style bags from roll film, seals the bottom, fills with weighed biscuits, then seals the top and cuts.
Output & Inspection: Finished bags exit to conveyors for date coding, checkweighing, or case packing.

Features of the Bakery Biscuit Packer Machine

High-Speed Multi-Head Weighing: This GG-HS8-200-S model achieves 20–40 bags per minute. The parallel weighing process eliminates bottlenecks.
Gentle Product Handling: Adjustable vibration intensity and custom bucket linings (e.g., food-grade silicone) protect delicate biscuits from breakage.
Advanced Combination Algorithm: Minimizes weight variation and giveaway, saving material costs and ensuring regulatory compliance.
Hygienic Stainless Steel Construction: All contact surfaces of bakery biscuit packing machine use AISI 304/316 stainless. Quick-release components enable fast cleaning for allergen changeovers.
Bag Format Flexibility: Easily switches between pouch sizes (10-2500g) and film types (OPP, PET/PE laminates).
User-Friendly Touchscreen HMI: Centralized control for setting weights, speeds, vibration parameters, and diagnostics. Stores recipes for quick product changeovers.
Integrated Downstream Connectivity: Built-in I/O ports link metal detectors, coders, or bag flatteners for inline quality assurance.
