Customized Biscuit Forming Machine for Bakery

The biscuit forming machine has different types, it is suitable for forming hard biscuits, soft biscuits, cookies and other products. The biscuit shape can also be customized according to needs.

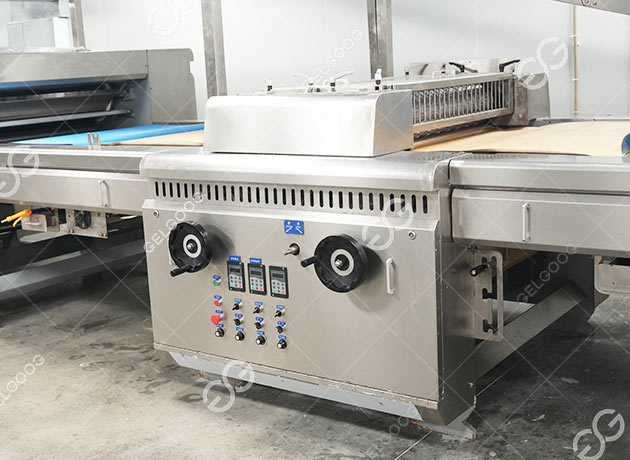

Forming Machine for Soft Biscuits

Adopting roller printing forming, the feed trough roller and the impression roller rotate relative to each other under the drive of gears. The dough in the dough bucket falls into the concave mold on the surface of the two rollers.

As the rollers rotate, the dough fills the mold under pressure to form a biscuit blank with a specific shape and pattern. The biscuit forming machine can realize the forming of different patterns by replacing the impression roller, which is suitable for large-scale production.

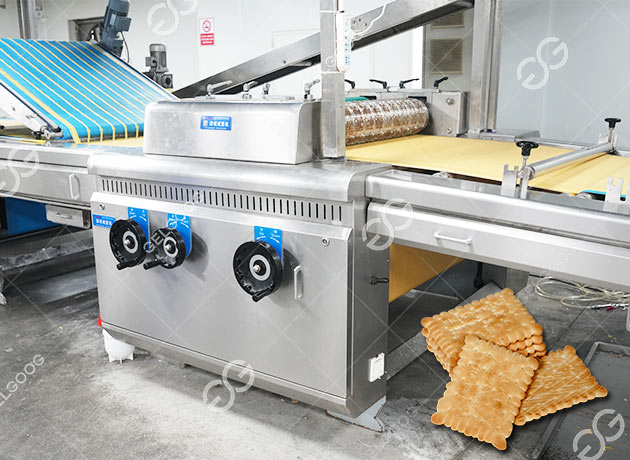

Forming Machine for Hard Biscuits

• Dough feeding: The dough is fed between the two rollers of the roller cutting forming machine by a conveyor belt or a feeding device. One of them is a patterned roller with a specific pattern or shape groove, and the other is a smooth pressing roller.
• Roller extrusion: The two rollers rotate relative to each other, and during the rotation process, the dough is squeezed into the groove of the patterned roller. The shape of the groove of the patterned roller determines the shape and pattern of the biscuit.
• Forming and cutting: As the roller rotates, the dough is pressed and formed in the groove of the pattern roller, and the excess dough is scraped off by the scraper. When the pattern roller rotates to a specific position, the formed biscuit blank is automatically demolded and falls on the conveyor belt.

Cookie Forming Machine

• Extrusion molding is one of the common methods of cookie forming machines. The prepared cookie dough is placed in the hopper, and the dough is extruded from multiple extrusion nozzles through a screw conveyor or extrusion device.
• The shape and size of the extrusion nozzle determine the shape and size of the cookie. During the extrusion process, the dough is subjected to a certain pressure and shear force, which forms a specific shape and pattern.
• The extrusion speed, pressure and fluidity of the dough can be adjusted as needed to produce products of various shapes and sizes. Some extrusion forming machines are also equipped with flower nozzles and rotating devices to further enrich the shape of cookies.

Features of Automatic Biscuit Forming Machine

• The shape, size and weight can be precisely controlled to meet different specifications. By changing the mold or adjusting the parameters, a variety of biscuit types can be made.
• The biscuit former machine can complete a large amount of forming work in a short time, operate stably, reduce interruptions caused by equipment failure, and improve production efficiency.
• Equipped with an intelligent control system, it is convenient for parameter setting and adjustment. The equipment can automatically complete the dough conveying, forming, demoulding and other processes.
• The forming quality is ensured by precisely controlling the dough temperature, humidity and forming pressure. The formed biscuits have regular shapes, clear patterns and uniform texture, meeting high quality standards.
