The multi pack biscuit packing machine is designed specifically for high-volume biscuit producers, changing the way biscuits are packaged. This purpose is to meet the needs of specific consumer scenarios and create multiple business values.

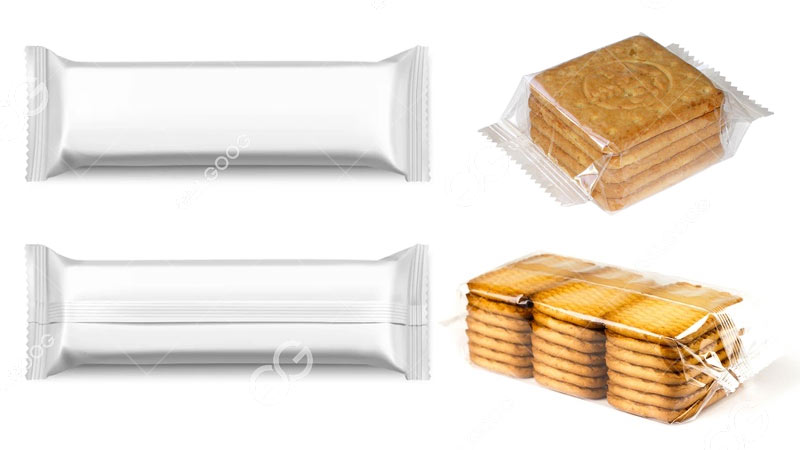

Multi packing is a sales form that combines multiple independently packaged biscuits into a large package (such as 4-pack, 6-pack, 12-pack, etc.). This improves shelf display and facilitates consumer purchasing.
Working Principle of Multi Pack Biscuit Packing Machine

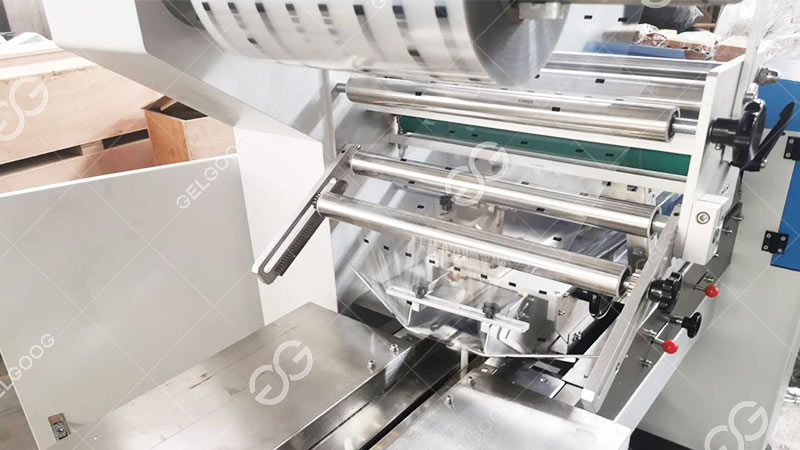

This machine employs an intermittent motion mechanism for accuracy. Film from the roll is drawn over a forming shoulder, shaping it into a tube. Pre-counted biscuit groups (multi-packs) are fed vertically via synchronized buckets or conveyors into the tube.
Horizontal sealing jaws simultaneously create the back seal of the new pack and the top seal of the preceding pack, while vertical jaws form tight end seals. Crucially, a multi-cavity puck system holds and transports biscuit groups during sealing, ensuring alignment and preventing shifting within the pouch.
Key Operating Steps of Multi Pack Biscuit Packer Machine
- Film Loading & Threading: Operator mounts the roll of laminated film and threads it through tensioners and the forming collar.
- Recipe Selection: Using the HMI touchscreen, the operator selects the pack format (e.g., 6-pack), pack length, and sets sealing temperature/timing.
- Biscuit Group Feeding: Biscuits are collated into precise groups (e.g., 2×3 rows) by an upstream feeder/counter and transferred into the machine’s filling station.
- Form-Fill-Seal Cycle: Groups are pushed into the film tube. Sealing jaws close, creating the pouch around the biscuits and separating the finished pack.
- Output & Inspection: Finished multi-packs are discharged onto a conveyor for optional inline checkweighing, metal detection, or date coding.
Features of Multipack Packing Machine for Biscuit
- Multi-Cavity Puck Adaptability: The heart of the system. Interchangeable or adjustable pucks securely hold varying biscuit quantities and configurations (e.g., 2×2, 3×2, 3×4) during sealing. Quick-change designs minimize format switchover time.
- Synchronized Group Feeding: Multi pack biscuit packing machine ensures precise positioning of biscuit stacks into the pucks. Gentle handling mechanisms (vibratory trays, bucket elevators, soft pushers) minimize product damage during transfer.
- Robust Sealing for Thicker Packs: Reinforced sealing jaws with precise temperature control deliver strong, hermetic seals even through multiple biscuit layers and potential crumbs.
- High-Speed Multi-Pack Output: Engineered for volume, achieving outputs tailored to pack complexity (e.g., 40-120 multi-packs per minute), significantly boosting line efficiency versus manual bundling.
- Integrated Quality Assurance: Programmable Logic Controller (PLC) monitors film tracking, seal integrity, and synchronization. Alerts operators to jams or mis-feeds, reducing waste.
- User-Centric HMI: Intuitive touchscreen interface allows operators to manage recipes, track production counts (total packs, groups), monitor machine status, and access diagnostics easily.
Why Choose a Multi Pack Biscuit Packing Machine?
- Reduced Labor Costs: Automates the most labor-intensive step in multi-pack production.
- Enhanced Product Protection: Secure, pillow-style pouches protect biscuit groups from crushing, moisture, and contamination during transit and display.
- Professional Shelf Impact: The multi pack biscuit packer machine creates uniform, airtight packaging that highlights your products and brand.

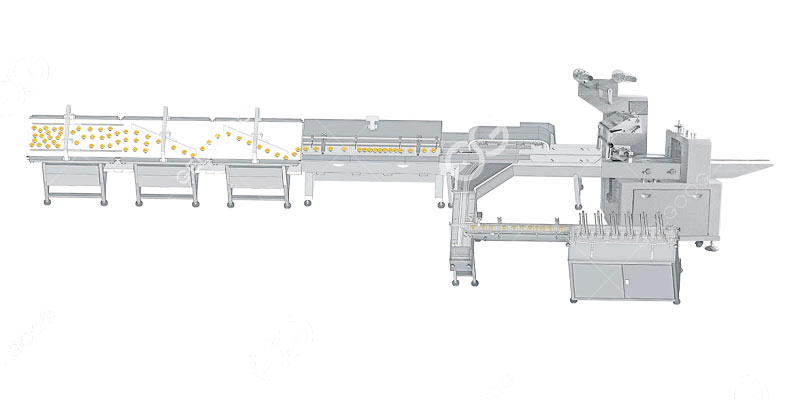

- Operational Scalability: Seamlessly integrates with upstream biscuit production and downstream case packing.
Technical Parameters
| Model | GG-ZS250X |
| Width of Film | Max.250mm |
| Length of Bag | 65～190mm or 120~280mm |
| Width of Bag | 30～110mm |
| Height of Product | Max.40mm |
| Film Roll Diameter | Max.320mm |
| Packing Speed | 40～230bags/min |
| Power | 220V,50/60HZ,2.4KVA |
| Size | (L)3920×(W)670×(H)1320 |
| Weight | 800Kg |
